Bradford
Supertel™

View product related downloads

Bradford Supertel™ is designed as internal insulation for HVAC ductwork. It also has many applications as a general insulation product to enhance both thermal and acoustic performance.

Bradford Supertel is manufactured from a resilient engineered glasswool insulation blanket typically with an appropriate facing. The blanket is manufactured by spinning molten glass, containing up to 65% recycled content, into fine wool like fibres. These are bonded together using a thermosetting resin. The product can be identified by its golden appearance.

Features and Benefits

Applications

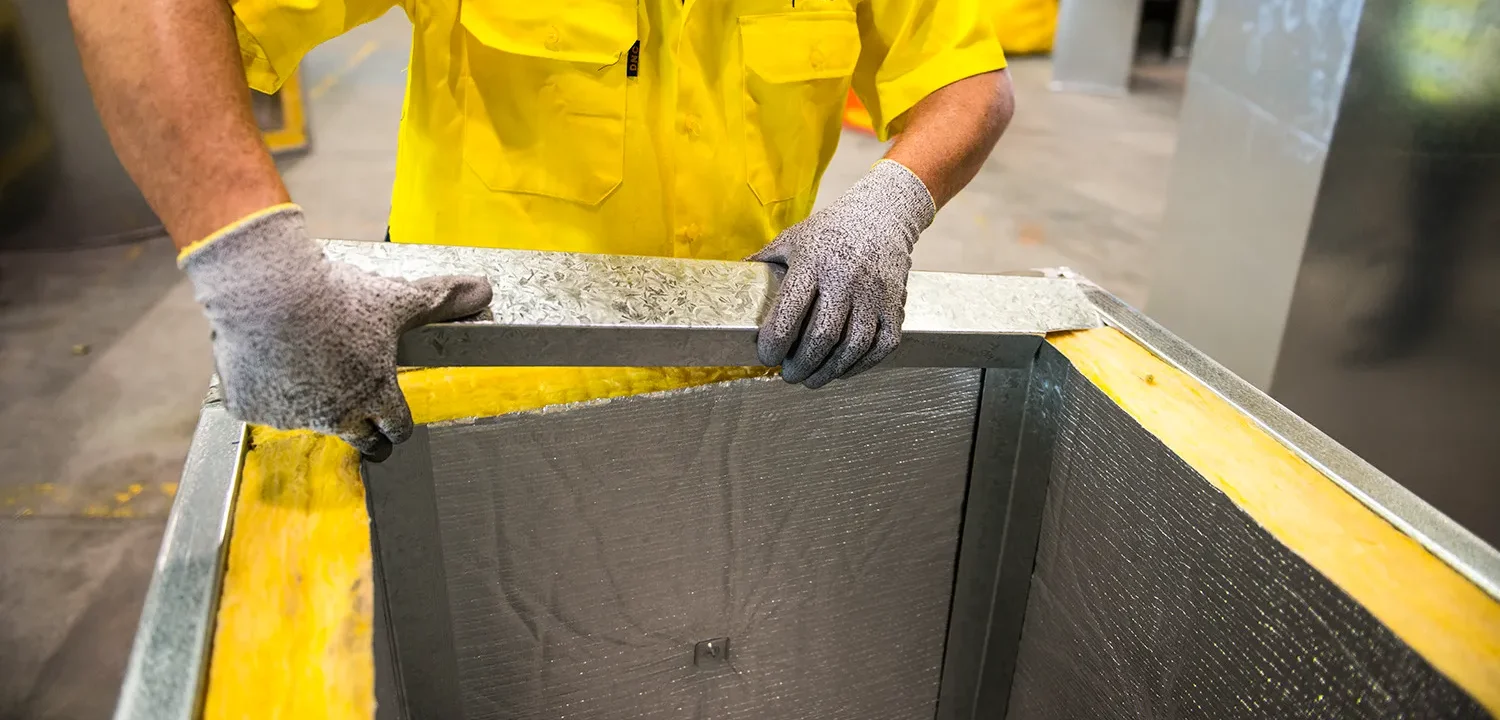

Supertel™ has been designed as a thermal and acoustic internal lining for all air conditioning duct work or may be used for other thermal and acoustic applications where high insulation performance is required at minimal thickness. Supertel™ comes in a range of thicknesses that meet the performance requirements as set out by the NZ Building Code.

Typical HVAC applications include:

Specifications

Board

R-Value Thickness
(mm)
Length
(m)
Width
(mm)
Pieces per pack Coverage per piece
(m2)
Coverage per pack
(m2)
Pack Weight
(kg)
Product Code
0.4 13 2.4 1200 16 2.9 46.1 19.2 16026
0.8 25 2.4 1200 10 2.9 28.8 23 15311
0.8 25 2.4 1500 10 3.6 36 28.8 15714
1.2 40 2.4 1200 6 2.9 17.3 21 111256
1.2 40 2.4 1500 6 3.6 21.6 26.3 111397
1.5 50 2.4 1200 5 2.9 14.4 23.0 15332
1.5 50 2.4 1500 5 3.6 18 28.8 15709
1.8 63 2.4 1200 4 2.9 11.52 23.2 96036
2.2 75 2.4 1200 3 2.9 8.6 20.7 15282
2.2 75 2.4 1500 2 3.6 7.2 17.3 30493
3.0 100 2.4 1200 2 2.9 5.8 18.4 15371
3.0 100 2.4 1500 2 3.6 7.2 23.0 15371

Blanket

R-Value Thickness
(mm)
Length
(m)
Width
(mm)
Pieces per pack Coverage per piece
(m2)
Coverage per pack
(m2)
Pack Weight
(kg)
Product Code
0.8 25 15 1200 1 18 18 14.4 15759
0.8 25 15 1500 1 22.5 22.5 18 15805
1.2 40 15 1200 1 18 18 21.9 111400
1.2 40 10 1500 1 15 15 18.2 111398
1.5 50 10 1200 1 12 12 19.2 16028
1.5 50 10 1500 1 15 15 24.0 15488
2.2 75 7.5 1200 1 9.0 9 21.6 15976

Standard packaging is polythene bags.
Published weights are for product only and do not include packaging.
