Bradford
Ultratel™

View product related downloads

Bradford Ultratel™ is designed as a high performance internal insulation on HVAC ductwork. It also has many applications as a general insulation product to enhance both thermal and acoustic performance.

Bradford Ultratel is manufactured from a rigid engineered glasswool insulation typically with an appropriate facing. The blanket is manufactured by spinning molten glass, containing up to 65% recycled content, into fine wool like fibres. These are bonded together using a thermosetting resin. The product can be identified by its golden appearance.

Features and Benefits

Applications

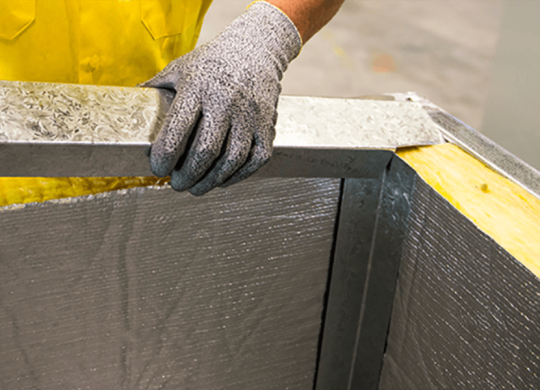

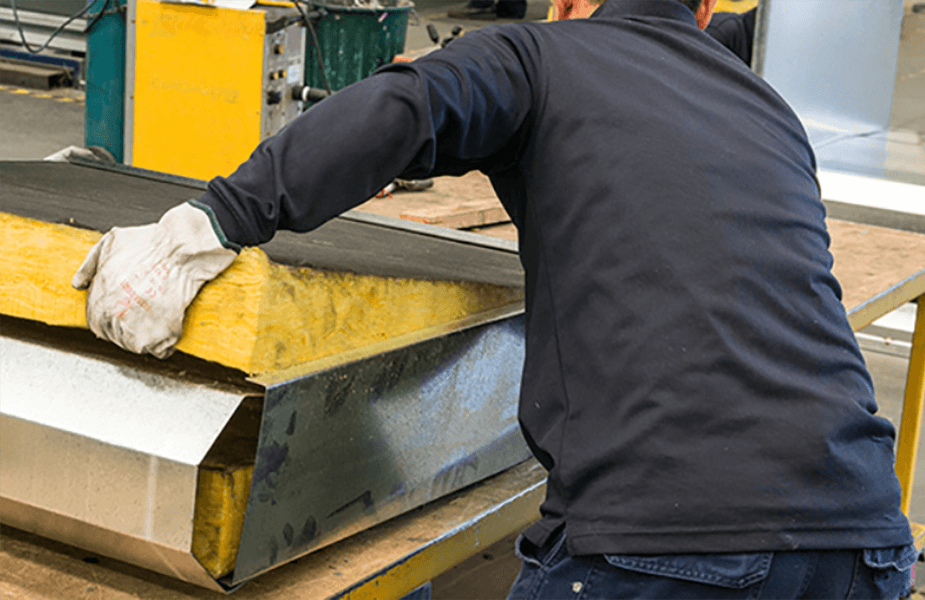

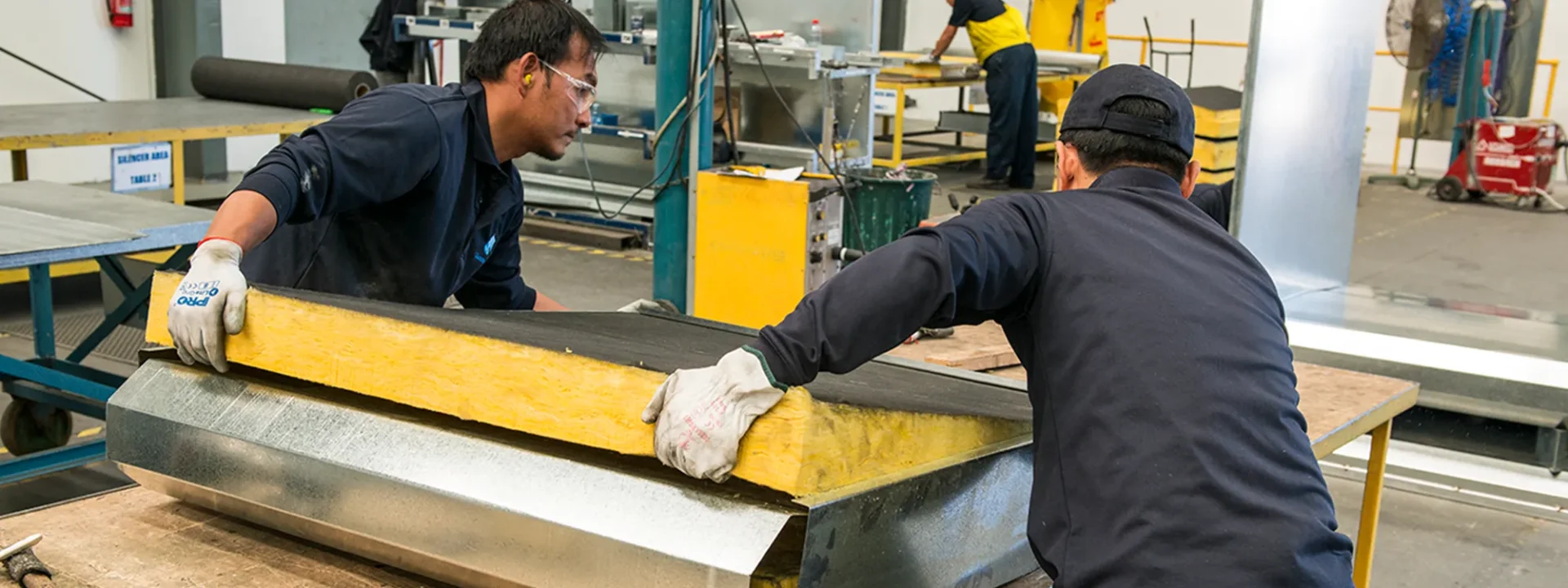

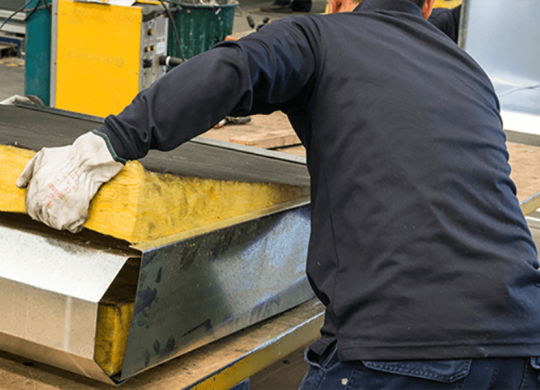

Ultratel is designed to provide high performance internal insulation of heating, air conditioning and cooling ducted systems. Ultratel™ delivers superior sound absorption and attenuation due to its higher density and rigid properties. Ultratel™ comes in a range of thicknesses that meet the performance requirements as set out by the Building Code of Australia.

Typical HVAC applications include;

Specifications

Blanket R-Value Nom
Thickness (mm)
Nom
Length (m)
Nom
Width (mm)
Pieces per pack Nom
Coverage per piece (m2)
Nom
Coverage per pack (m2)
Nom Piece Weight (kg) Nom Pack Weight (kg)
R0.8 25 10 1200 1 12.0 12.0 14.4 14.4
R0.8 25 10 1500 1 15.0 15.0 18.0 18.0
R0.8 25 2.4 1200 1 2.9 2.9 3.5 3.5
R1.2 38 10 1200 1 12.0 12.0 21.9 21.9
R1.2 38 10 1500 1 15.0 15.0 27.4 27.4
R1.5 50 7.5 1200 1 9.0 9.0 21.6 21.6
R1.5 50 7.5 1500 1 11.3 11.3 27.0 27.0
R1.5 50 2.4 1200 1 2.9 2.9 6.9 6.9
R2.3 75 2.4 1200 1 2.9 2.9 10.4 10.4
