Rondo Maxiframe External
Wall Framing System

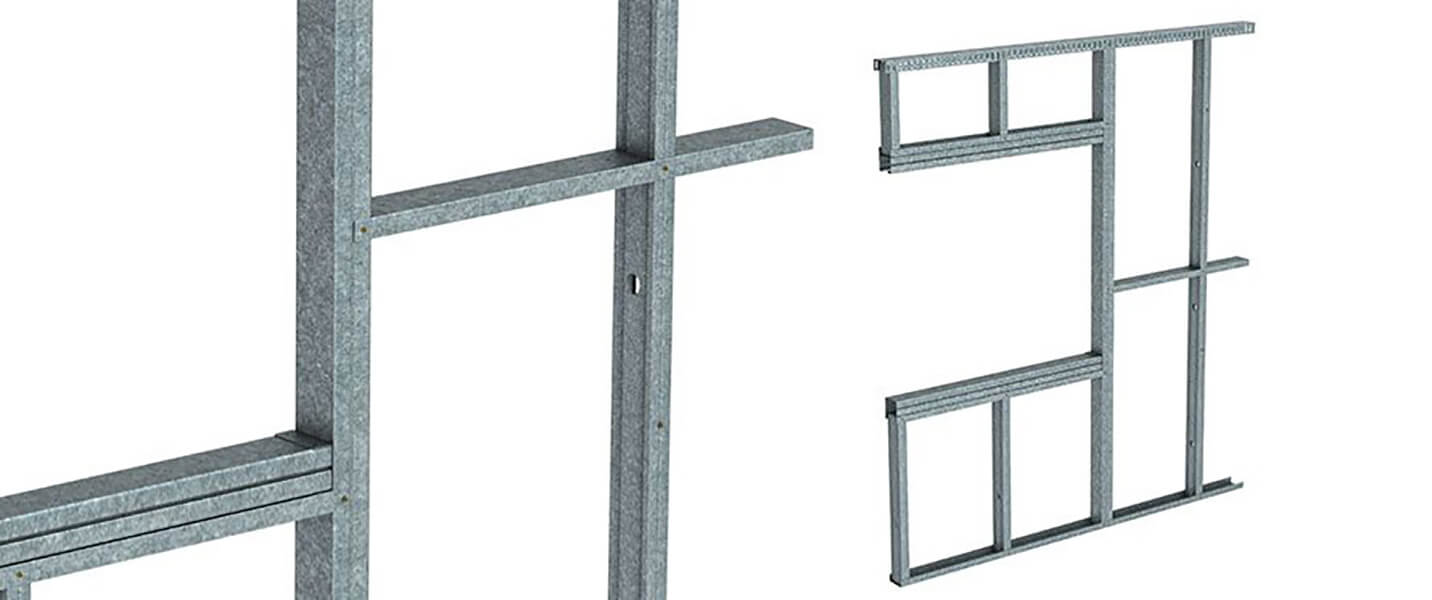

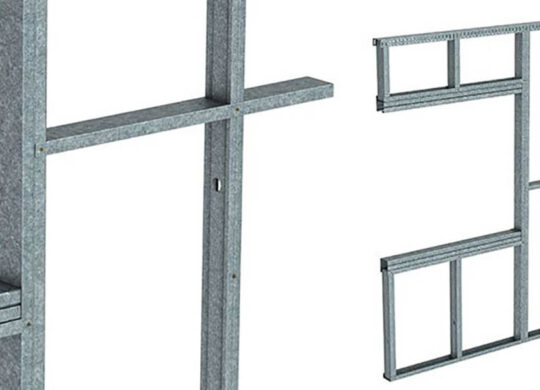

The MAXIframe External Wall Framing System is a lightweight steel framing system for external wall construction. The system has been expertly engineered to offer builders a more efficient, versatile and cost-effective design option than traditional external wall framing construction methods.

MAXIframe incorporates standard Rondo 92mm Steel Studs as the main framing and includes two major profiles; MAXIjamb, a Jamb Stud and MAXItrack, a Slotted Deflection Head Track as well as complementary cleats to provide a simple, yet solid structure.

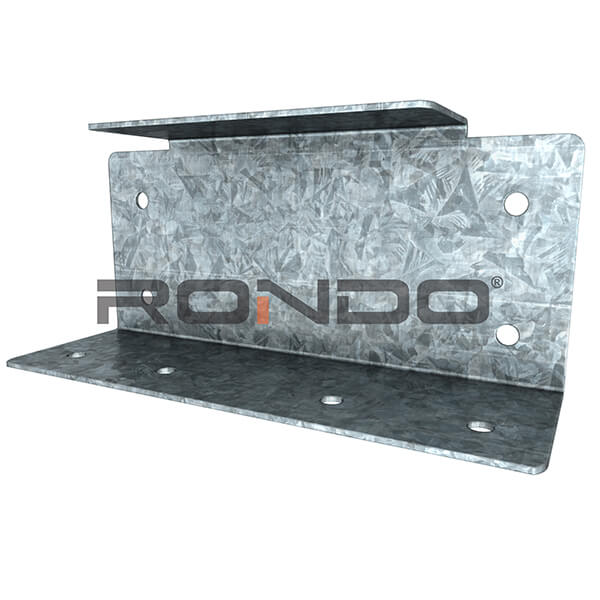

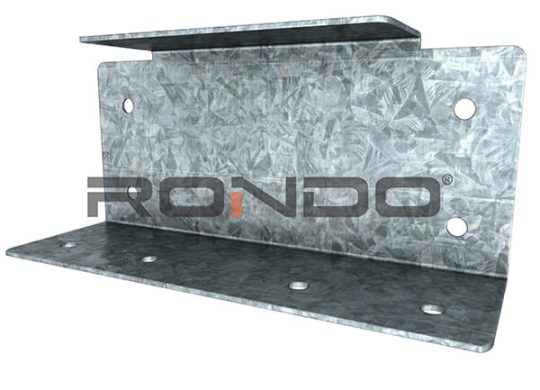

Together with three complementary cleats, the MAXIframe System provides a simple, solid structure that not only outperforms typical boxed stud configuration, but also reduces the required number of nogging tracks, saving the builder both time and money.

• MAXIjamb can support and carry greater load than regular wall studs, therefore removing the need for boxed or back to back stud configurations
• MAXItrack provides positive connection between stud and deflection head which has allowed the Nogging Track normally located 100mm below the head track to be removed
• Greater performance capacities than traditional external wall framing constructions
• Available in custom lengths
• Made from hi tensile steel, 1.2BMT G500
• Can be used both a vertical jamb member around openings or horizontal head and sill member in window openings

Suitable For

• External Wall Systems
• Vented External Walls
• Non-Vented External Walls
• Load Bearing Walls by design
• Window and Door Jambs
• Non-Fire Rated and Fire Rated Systems
• Dual exterior cladding and interior linings support
• Insulation in wall cavity
• Access for service within outer walls

Rondo have a wizard that can help you determine maximum ceiling spans, wall heights, product estimation, radius calculations and seismic design.
