Deflok Seismic
Bracing

View product related downloads

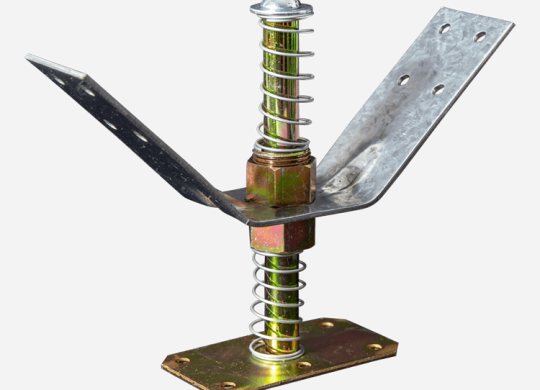

DEFLOK™ is a revolutionary partition bracing system which allows vertical deflection whilst still maintaining all the lateral bracing attributes of the TRACKLOK® range.

Timber and proprietary aluminium head and glazing tracks have limited to no vertical deflection capabilities. DEFLOK™ gives these systems the ability to allow for + / – 35mm of vertical deflection whilst still maintaining all the lateral brace attributes of the standard TRACKLOK® range.

The range of DEFLOK™ products includes:

DEFLOK™ RETRO – Aluminium head and glazing tracks have limited to no vertical deflection capabilities, giving these systems the ability to allow for + / – 35mm of vertical deflection whilst still maintaining all the lateral brace attributes of the standard TRACKLOK® range.

DEFLOK™ TIMBA – Timber framed partition walls have limited to no vertical deflection capabilities. DEFLOK™ TIMBA gives these systems the ability to allow for + / – 35mm of vertical deflection whilst still maintaining all the lateral brace attributes of the standard range.

DEFLOK™ VERT – Service clashes are inevitable and although the DEFLOK™ range provides flexibility with bracing angles from 30° to 60° there will always be some situations where this is not enough. DEFLOK™ VERT gives the installer a tool to use a vertical brace on one arm allowing for the ultimate in clash avoidance. Utilised in IL2, IL3 and IL4 buildings. Available in TIMBA and RETRO
