Mammoth Skillion Roof Insulation

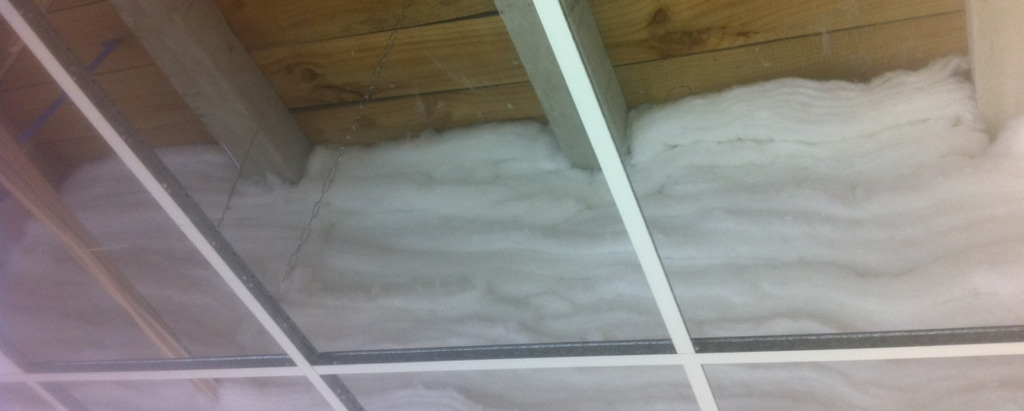

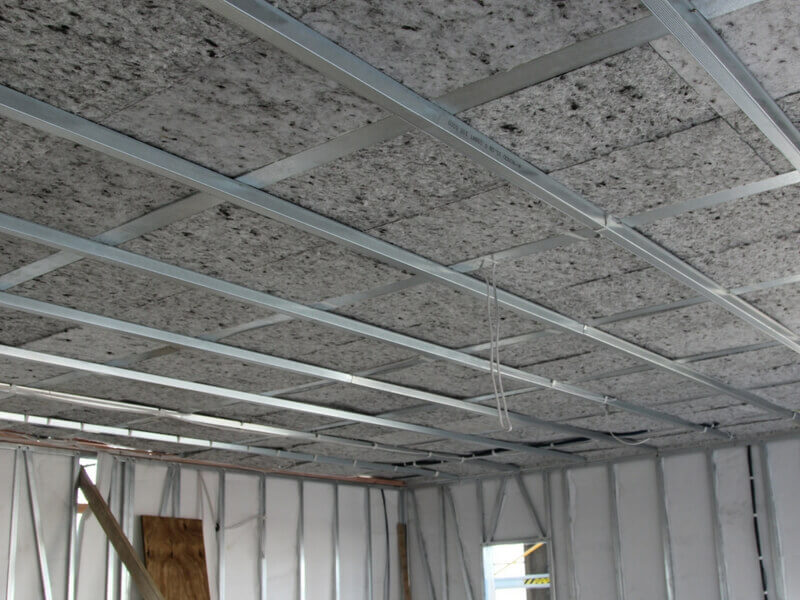

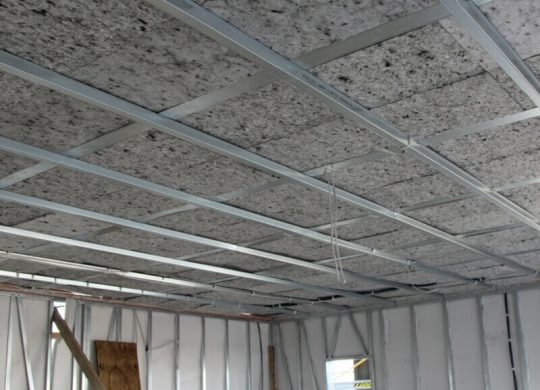

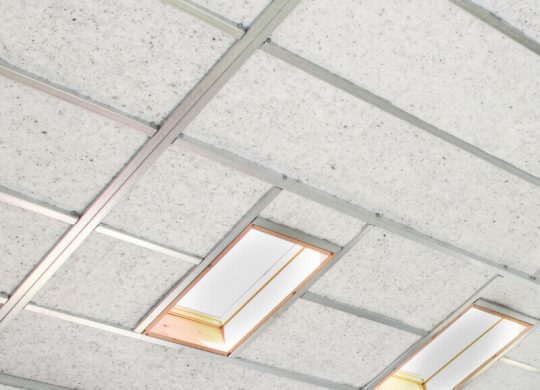

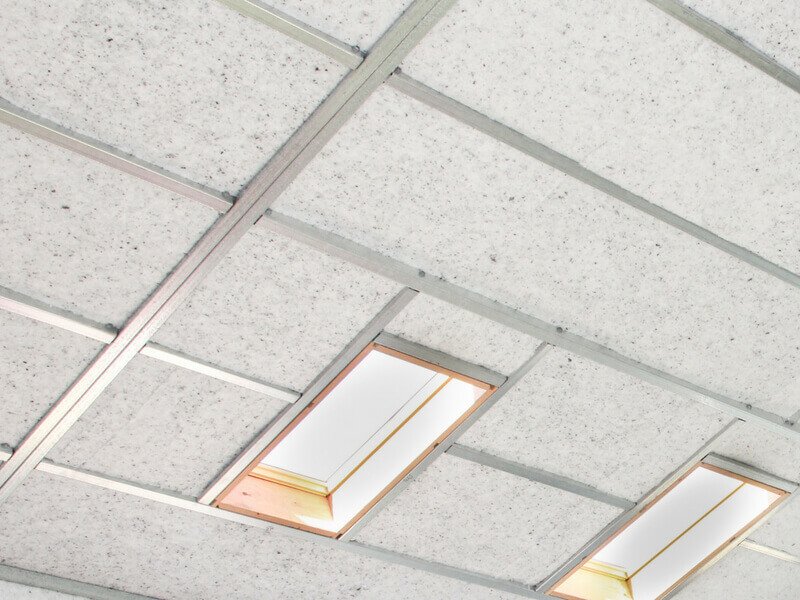

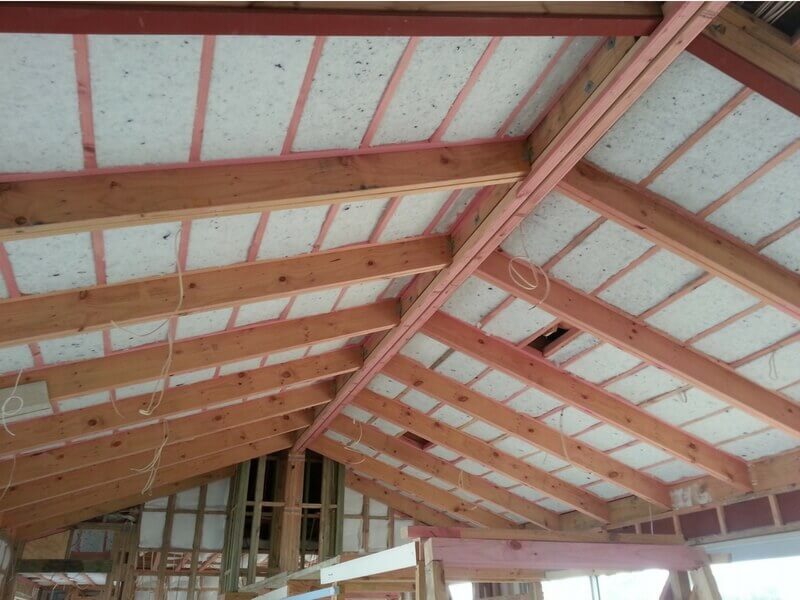

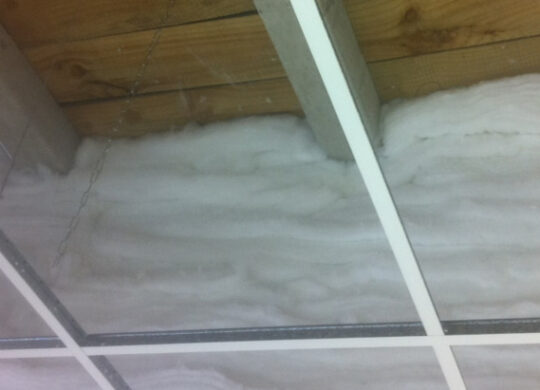

Mammoth skillion sections are designed to promote high thermal performance in modern skillion roof or flat roof designs.
High density, moisture-resistant sections are made from 100% polyester with a controlled loft to ensure the required 25mm air ventilation gap to the roof is always maintained.

They are Red List Free and allow a smooth crease-free friction-fit to enhance thermal performance.

Product Properties

Mammoth Skillion comes in two thicknesses; 115mm (R2.9) or 165mm (R3.2) depending on the climate zone and how much room has been specified for the ceiling cavity.

  • High performance semi-rigid 100% polyester sections.
  • Controlled loft to provided assured air-space to roof lining.
  • Self-supporting for a smooth friction fit without creases, folds or tucks.
  • Provides thermal and acoustic benefits for residential and commercial applications.
  • Mammoth products contain recycled polyester fibres. Skillion insulation uses up to 9,300 recycled plastic bottles per 100sqm*.
  • Easy and safe to install – simply squeezes between joists with no need for staples.
  • Safe and easy to work with, sections can easily be cut using wide blade craft knives or specialised insulation saws.
  • Mammoth sections come in pre-cut sections of varying widths and lengths.
  • Mammoth is moisture, mould and mildew resistant.
  • Heat bonded – no glues or binders that can break down so it won’t sag or settle over time.
  • Safe, non-itch, odourless and non-toxic – no precautions are required for handling the product.
  • Most Mammoth skillion sections are BRANZ Appraised 797.
  • NZ Green Building Council approved.
  • Mammoth products are made in a zero waste production process and are fully recyclable.
  • Recycling plastic protects the environment by keeping the carbon content locked up in the polyester fibre and reducing landfill waste.
  • Long lasting, Mammoth insulation is performance warranted for 50 years (T&Cs apply).
  • Manufactured by InZone Industries Ltd, NZ’s first and only Toitū net carbonzero certified insulation manufacturing organisation.

* Calculations are based on 500ml PET Bottles (16.2g).

Technical Attributes Standard Test Result
New Zealand Building Code
Durability Clause B2.3.1 a) 15 years
Clause B2.3.1 b) 50 years
Ref: BRANZ Appraisal No 7971
Internal Moisture Clause E3.3.1 Ref: BRANZ Appraisal No 7971
Hazardous Building Materials Clause F2.3.1 Ref: BRANZ Appraisal No 7971
Energy Efficiency Clause H1.3.1(a)
Clause H1.3.2 E
Ref: BRANZ Appraisal No 7971
Product Safety
Non Toxic OSH Health and Safety Guidelines2 Polyester products are ‘non-toxic’
Non Irritant OSH Health and Safety Guidelines2 Polyester products are ‘non-irritant’
Respiratory Safe n/a Polyester fibres are non-respirable
Fire Test ISO9705 Group1S (R3.2 sections only)
AS/NZS60695.2.11 Passed – Glow wire flammability test
AS/NZS60695.11.5 Passed – Test flames (Needle-flame test)
VOC Emission Safe 3 Total VOC ≤ 0.5mg/m3 < 0.005mg/m3 – level below detection4
Formaldehyde ≤ 0.06mg/m3 < 0.009mg/m3 – level below detection
Glue Free Free from all glues
Other
Non Corrosive AS/NZS4859.1 Materials composed entirely of polyester are regarded as non-corrosive and are exempt from testing. Alkalinity of pH 7.8
Vermin Resistant Not a food source for vermin (and not treated)

1 Meet or contribute to meeting these provisions when designed, used, installed and maintained in accordance with the statements and conditions of BRANZ Appraisal 797.
2 Occupational Safety and Health Service. Health and Safety Guidelines for the Selection and Safe Handling of Synthetic Mineral Fibres, Dept,of Labour, 1994.
3 Mammoth has been tested under ASTM D5116. Based on test results for a product with similar nominal weight.
4 All individual VOCs were less than their threshold limit values. Carcinogens and reproductive toxins were not identified as part of the VOCs.
