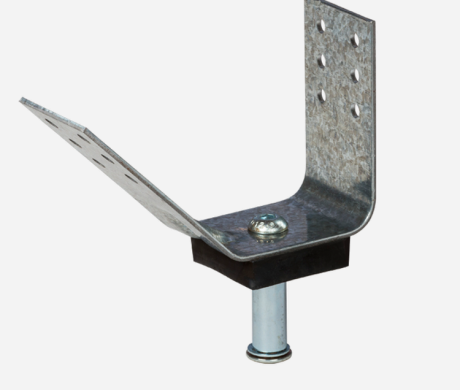

Service clashes are inevitable and although the Tracklok range provides flexibility with bracing angles from 30° to 60° and across the wall at up to 45°, there will always be some projects where even this is not enough. Utilises a vertical arm to avoid service clashes. Connect to the head track (min .75BMT Steel or 1.3mm Aluminium Section) with 10 gauge wafer tek screws or timber top plate (90 x 45mm SG8 Radiata Pine or Douglas Fir) with 10 gauge 35mm wood screws[/vc_column_text][/vc_column_inner][vc_column_inner width="1/2"][vc_gallery type="flexslider_slide" interval="3" images="5973,5974" img_size="540x390" el_class="productzoom-icon"][/vc_column_inner][/vc_row_inner][vc_row_inner content_placement="middle" el_class="properties-section py-100"][vc_column_inner width="1/2"][vc_single_image image="5974" img_size="full"][/vc_column_inner][vc_column_inner width="1/2"][vc_column_text el_class="image-width-text-content"]
Product Properties
Key Features
Tested with head track and full wall construction to provide confidence
Tested under ULS and SLS loads to ensure longevity of performance
Unique design allows for 50mm of inter-storey drift
Top plate pivot points allow for 90mm of in-line wall deflection
Unique design allows for 20mm of wall ‘spring back’ in ULS event
Unit allows a 30° – 60° bracing angle to mitigate service clashes
Unit tested to 45° off wall axis to mitigate service clashes
Allows lining and bracing at the same time providing efficiencies on site
Complies to and provides compliance with AS/NZS 1170 and AS/NZS 4219.
Provides compliance with NZ Building Code Clause B1 – Structure, B2 – Durability, F2 – Hazardous Building Materials.
Contributes to compliance with NZ Building Code Clause F6 – Visibility in Escape Routes, Clause D1 – Access Routes.
ALSO AVAILABLE Tracklok Vert Plus Utilises a vertical arm to avoid service clashes. Connect to the head track (min .75BMT Steel or 1.3mm Aluminium Section) with 10 gauge wafer tek screws or timber top plate (90 x 45mm SG8 Radiata Pine or Douglas Fir) with 10 gauge 35mm wood screws.[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner disable_element="yes" el_id="profile_options" el_class="releated_products"][vc_column_inner][vc_column_text el_class="bg-section-grey py-100"]
Profile Options
Austratus offers a diverse range of practical and stylish choices, including:
[profile_option_section]
[/vc_column_text][vc_row_inner][vc_column_inner width="1/3"][vc_single_image image="3183" img_size="full"][vc_custom_heading text="Potters Whitepapers" font_container="tag:h4|font_size:18px|text_align:left|color:%23323232" use_theme_fonts="yes" link="url:https%3A%2F%2Fpotters.co.nz%2Fpotters-white-papers%2F|title:Whitepapers" el_class="vc_gitem-post-data-source-post_title"][vc_column_text css=".vc_custom_1737085649400{margin-bottom: 20px !important;}"]Browse the Potter Interior System collection of white papers. Get inspired & get the specifications you need for your project.[/vc_column_text][vc_btn title="Read More" style="custom" custom_background="" custom_text="#666666" link="url:https%3A%2F%2Fpotters.co.nz%2Fpotters-white-papers%2F|title:Whitepapers"][/vc_column_inner][vc_column_inner width="1/3"][vc_single_image image="5714" img_size="350*271"][vc_custom_heading text="CAD Downloads" font_container="tag:h4|font_size:18px|text_align:left|color:%23323232" use_theme_fonts="yes" link="url:https%3A%2F%2Fpotters.co.nz%2Fcad-download%2F|title:Whitepapers" el_class="vc_gitem-post-data-source-post_title"][vc_column_text css=".vc_custom_1737087863515{margin-bottom: 20px !important;}"]Potter Interior Systems has a wide range of resources to help you complete your project. Download your CAD files today.[/vc_column_text][vc_btn title="Read More" style="custom" custom_background="" custom_text="#666666" link="url:https%3A%2F%2Fpotters.co.nz%2Fcad-download%2F|title:Whitepapers"][/vc_column_inner][vc_column_inner width="1/3"][vc_single_image image="3458" img_size="full"][vc_custom_heading text="Aluminium Specification Manual" font_container="tag:h4|font_size:18px|text_align:left|color:%23323232" use_theme_fonts="yes" link="url:https%3A%2F%2Fpotters.co.nz%2Fwp-content%2Fuploads%2F2024%2F12%2FAluminium-Partitions-Specifier-Manual_2024_1124_web.pdf|title:Whitepapers" el_class="vc_gitem-post-data-source-post_title"][vc_column_text css=".vc_custom_1737087875458{margin-bottom: 20px !important;}"]To ensure you are specifying the right partition suite for your project, view our extensive range of Aluminium Partition Suites.[/vc_column_text][vc_btn title="Read More" style="custom" custom_background="" custom_text="#666666" link="url:https%3A%2F%2Fpotters.co.nz%2Fwp-content%2Fuploads%2F2024%2F12%2FAluminium-Partitions-Specifier-Manual_2024_1124_web.pdf"][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row]
[post_title] => Tracklok Vert
[post_excerpt] => The Tracklok range provides flexibility with bracing angles from 30° to 60° and across the wall at up to 45°.
[post_status] => publish
[comment_status] => closed
[ping_status] => closed
[post_password] =>
[post_name] => tracklok-vert
[to_ping] =>
[pinged] =>
[post_modified] => 2025-05-08 04:02:19
[post_modified_gmt] => 2025-05-07 15:02:19
[post_content_filtered] =>
[post_parent] => 0
[guid] => https://potters.co.nz/?post_type=product&p=3513
[menu_order] => 0
[post_type] => product
[post_mime_type] =>
[comment_count] => 0
[filter] => raw
)
Service clashes are inevitable and although the Tracklok range provides flexibility with bracing angles from 30° to 60° and across the wall at up to 45°, there will always be some projects where even this is not enough. Utilises a vertical arm to avoid service clashes. Connect to the head track (min .75BMT Steel or 1.3mm Aluminium Section) with 10 gauge wafer tek screws or timber top plate (90 x 45mm SG8 Radiata Pine or Douglas Fir) with 10 gauge 35mm wood screws
Product Properties
Key Features
Tested with head track and full wall construction to provide confidence
Tested under ULS and SLS loads to ensure longevity of performance
Unique design allows for 50mm of inter-storey drift
Top plate pivot points allow for 90mm of in-line wall deflection
Unique design allows for 20mm of wall ‘spring back’ in ULS event
Unit allows a 30° – 60° bracing angle to mitigate service clashes
Unit tested to 45° off wall axis to mitigate service clashes
Allows lining and bracing at the same time providing efficiencies on site
Complies to and provides compliance with AS/NZS 1170 and AS/NZS 4219.
Provides compliance with NZ Building Code Clause B1 – Structure, B2 – Durability, F2 – Hazardous Building Materials.
Contributes to compliance with NZ Building Code Clause F6 – Visibility in Escape Routes, Clause D1 – Access Routes.
ALSO AVAILABLE
Tracklok Vert Plus Utilises a vertical arm to avoid service clashes. Connect to the head track (min .75BMT Steel or 1.3mm Aluminium Section) with 10 gauge wafer tek screws or timber top plate (90 x 45mm SG8 Radiata Pine or Douglas Fir) with 10 gauge 35mm wood screws.
Product Downloads
Detailed information is provided on product specific datasheets referenced below.
Utilising the strength of the TRACKLOK® design and the ability to brace one wall off another, TRACKLOK® FLAT is revolutionary. Ensuring seismic separation, providing ceiling clearance and featuring unique adjustability to clear troffer lights and services.
Bringing an existing fit out up to seismic code, adding value to your clients existing fit out, or create efficiencies by bracing and lining at the same time.
