AMF Thermatex
Alpha HD

View product related downloads

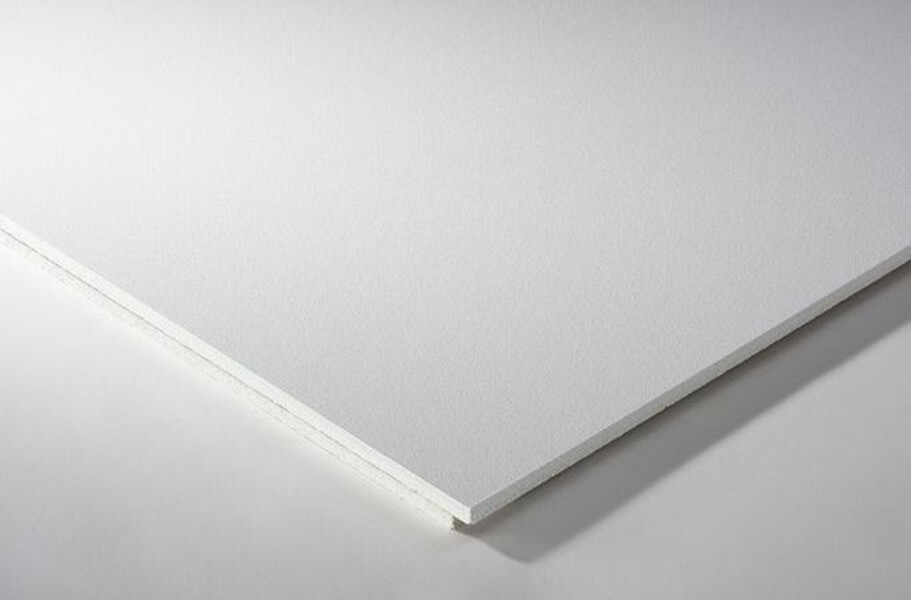

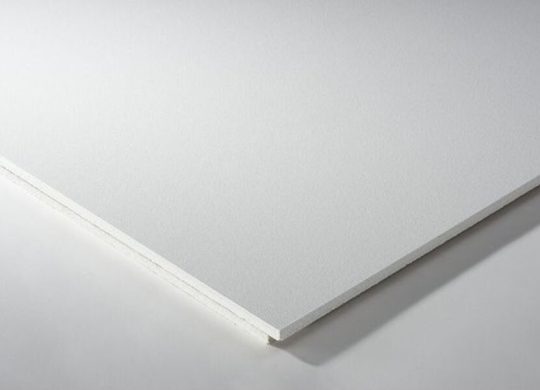

THERMATEX® Alpha HD is the extremely absorbing plank ceiling from the AMF Acoustic Range.

Plank tiles up to 1800 mm long enable rooms or corridors to be equipped with high absorbency whilst the material guarantees easy handling and uncomplicated construction.

The plank tiles are also available in square format. The elegant white acoustic fleece provides a high quality surface.

System
Exposed grid system, demountable ceiling (19 mm, 30 mm, 35 mm)
Dimensions
1200 x 600mm (more sizes available on request)
Thickness/Weight
19 mm (ca. 5,2 kg/m²), 30 mm (ca. 8,2 kg/m²),
35 mm (ca. 9,5 kg/m²)
Colour
White similar to RAL 9010
Edge Details
SK (others available on request)
Building Materials Class
A2-s1,d0 as per EN 13501-1
Sound absorption
EN ISO 354
αw = 0.90 as per EN ISO 11654 (19 mm, 35 mm)
NRC = 0.85 as per ASTM C 423-01 (19 mm, 35 mm)
αw = 0.90 as per EN ISO 11654 (30 mm)
NRC = 0.90 as per ASTM C 423-01 (30 mm)
Sound attenuation
Dn,f,w = 34 dB as per EN ISO 10848
(19 mm thickness, according to test certificate)
Dn,f,w = 40 dB as per EN ISO 10848
(30 mm thickness, according to test certificate)
Dn,f,w = 42 dB as per EN ISO 10848
(35 mm thickness, according to test certificate)
Light reflectance up to 88%
Thermal conductivity λ = 0.052 – 0.057 W/mK as per DIN 52612
Air permeability PM1 (≤ 30 m³/hm²) as per DIN 18177
Humidity up to 95% RH
