A Series 105
Aluminium Partition System

View product related downloads

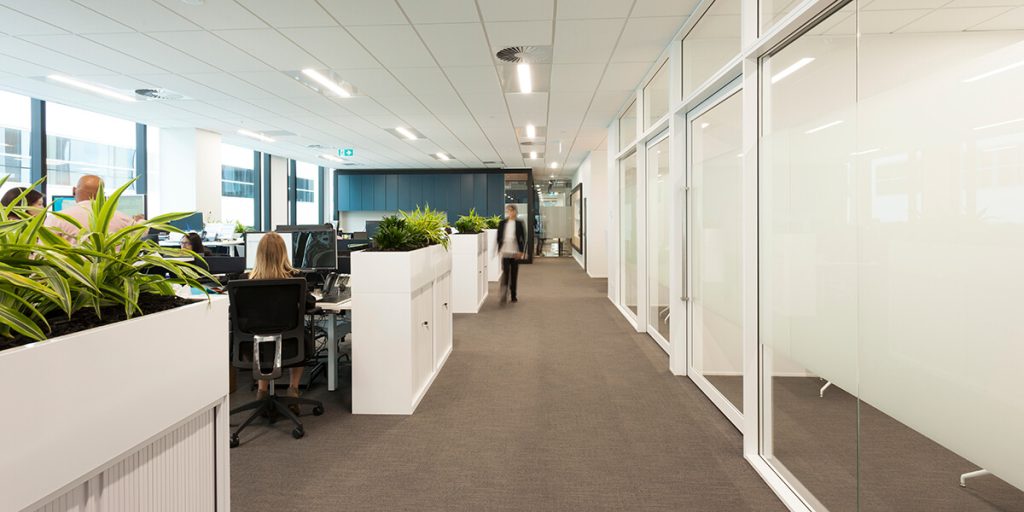

Discover the versatility and functionality of the A Series 105. With its central line glazing, wide range of configurations, and design options, this partition system is the perfect choice for both plasterboard and glazing applications.

The A Series 105 boasts an impressive array of features, including:

Standard Profile Sizes: Choose from three standard profile sizes to suit your specific needs: 105mm x 25mm, 105mm x 35mm, or 105mm x 50mm. These profiles ensure strength and durability while maintaining an elegant appearance.
Wall Compatibility: Our partitions are designed to seamlessly integrate with various wall structures. The standard wall size is based on a 64mm steel stud, with the option of using either a single or double layer of 13mm plasterboard on each side. This flexibility allows for easy installation and adaptability to different construction requirements.
Glass Thickness Options: Whether you prefer a thinner or thicker glazing solution, the A Series 105 can accommodate glass thicknesses ranging from 6mm to 13mm. This versatility enables you to achieve your desired aesthetic and performance goals.
Door Compatibility: Our partition system is designed to accommodate a wide range of door thicknesses. You can select thickness between 38mm and 50mm, ensuring compatibility with your preferred door style and design.
Optional Shadowline Details: Enhance the visual appeal of your partitions with optional shadowline details. These sleek and refined touches add a touch of sophistication to any space, elevating the overall aesthetic and creating a modern and seamless look.

All our aluminium partition suites carry the Declare label.
Final Assembly: New Zealand. Life Expectancy: 50+ years. End of of Life Options: 100% Reusable/Recyclable.

If you would like design assistance please email our specification team on specsupport@potters.co.nz
